Industrial Water Treatment Dosing Pump/Dosing Screw Pump

Name: Industrial Water Treatment Dosing PumpDosing Screw Pump
Brand: ZTIC
Price: 1 USD

Quality Industrial Water Treatment Dosing Pump/Dosing Screw Pump wholesale

Brand Name : ZTIC

Model Number : Ore Dressing Equipment

Certification : ISO\CE

Place of Origin : Henan China

MOQ : 1set

Price : negotiated

Packaging Details : Standard packing or according to customer's requirement

Condition : New

Warranty : 12 months

Power : 250W

Voltage : 380V

Port : Qingdao China

Classification : Ore Dressing Equipment

Diameter : DN15mm

Contact Now

Industrial Water Treatment Dosing Pump/Dosing Screw Pump

Dosing pump are positive displacement pumps that precisely measure and deliver liquids. They are widely used in chemical dosing systems in industries such as water treatment, chemical engineering, and power generation.
Applications
In industrial water treatment, they are used for the precise dosing of corrosion inhibitors, scale inhibitors, biocides, pH adjusters, and flocculants. In the chemical and pharmaceutical industries, they are used for the precise mixing and delivery of various chemical raw materials. In the environmental protection industry, they are used for sewage treatment and waste gas treatment.
Main Specification:
Rated flow: 24-2000 L/h
Temperature:-30ºC-50ºC(S.S.100ºC) Max pressure: 1.0 MPa
Material viscosity: 0.3-800mm²/s Dosing precision:±1%
Dosing screw pump is a type of pump that works based on the positive displacement principle. The main working parts are the eccentric screw (rotor) and the fixed bushing (stator). The rotor makes planetary rotation in the stator to form a sealed cavity, achieving axial uniform delivery of the medium.
Please confirm the flow capacity, feeding pressure, pump type and flow direction.
Flow: Under pressure, the flow is proportional to the rotating speed.
Pressure: It's decided by the pump grade number, normally every range is 0.6 MPa.before using.
Flow Direction: the flow direction is decided by the motor direction. The inlet/outlet is set according to needs. Normally the port near to the motor is the inlet.

Product Parameters of Ore Dressing Equipment
Specifications of Dosing pump

Model	Flow(L/h)	Pressure(Mpa)	Power(W)	Voltage(V)	Diameter(mm)	Connection
HK100/0.8	100	0.8	250	380	DN15	Socket
HK120/0.8	120	0.8	250	380	DN15

HK210/0.6	210	0.6	250	380	DN15
HK280/0.6	280	0.6	250	380	DN15
HK320/0.6	320	0.6	370	380	DN15	Flang

HK410/0.5	410	0.5	550	380	DN15
HK500/0.4	500	0.4	550	380	DN15
HK600/0.3	600	0.3	550	380	DN15

HK-A800/0.4	800	0.4	750	380	DN32

HK-A1000/0.4	1000	0.4	750	380	DN32	Socket/ Flange
HK-A1200/0.4	1200	0.4	750	380	DN32

HK-A1500/0.4	1500	0.4	750	380	DN32
HK-A1800/0.3	1800	0.3	750	380	DN32
HK-A2000/0.3	2000	0.3	750	380	DN32

Specifications of Dosing screw pump

Model	Flow Q (m³/h)	Working Pressure(Mpa)	Max Speed n(r/min)	Motor Power p(kw)	(NPSH) r(m)	Inlet Flange Diameter(mm)	Outlet Flange Diameter(mm)	Allowable Particle Diameter(mm)	Allowable Fiber Length(mm)


G10-1	0.1	0.6	960	0.55	4	25	25	0.8	15

G10-2		1.2		0.55
G13-1	0.4	0.6	960	0.55		25	25	0.8	15

G13-2		1.2		0.55
G15-1	0.6	0.6	960	0.55		25	25	0.8	15
G15-2		1.2		0.55
G20-1	0.8	0.6	960	0.75		25	25	1.5	25

G20-2		1.2		1.5
G25-1	2	0.6	960	1.5		32	25	2	30
G25-2		1.2		2.2
G30-1	5	0.6	960	2.2		50	40	2.5	35
G30-2		1.2		3

Product Display of Ore Dressing Equipment

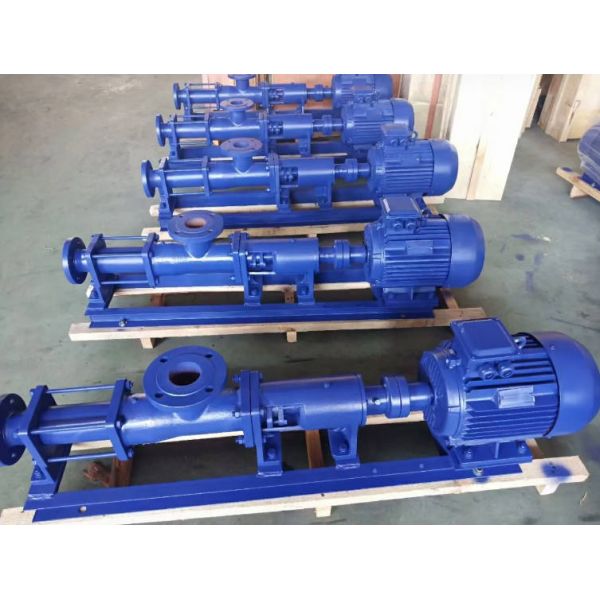

Industrial Water Treatment Dosing Pump/Dosing Screw Pump

Ore Dressing Equipment

Industrial Water Treatment Dosing Pump/Dosing Screw Pump Images
